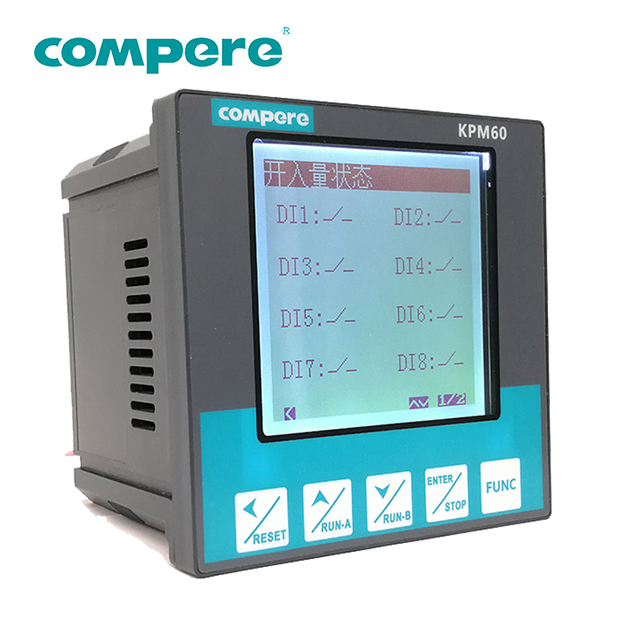

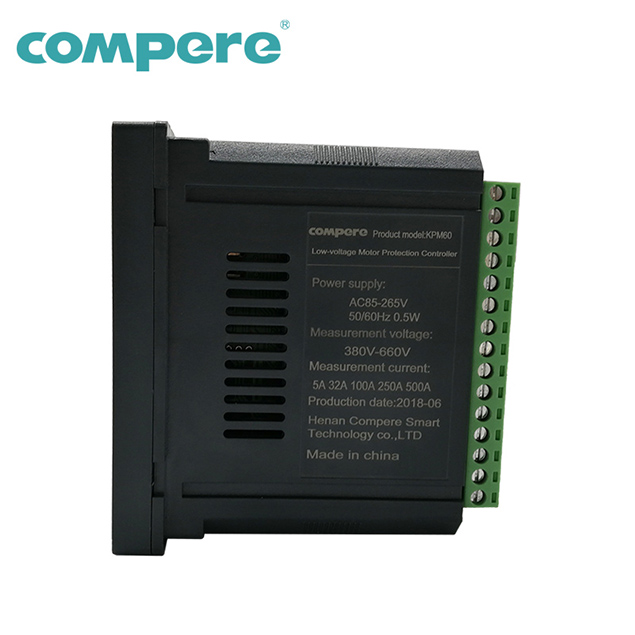

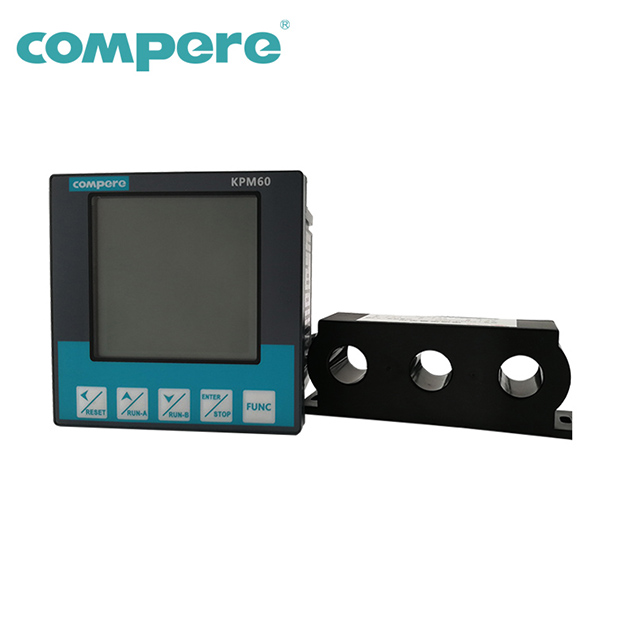

KPM60Low-voltage motor protection controller-Technical parameters |
|
Working power source |
Operating Voltage |
AC85~265V/DC80~300V |
|
|
Rated power |
＜5VA |
|
Input voltage |
Rated voltage |
380V-660V |
|
|
Frequency range |
45~65Hz |
|
Input current |
Rated current |

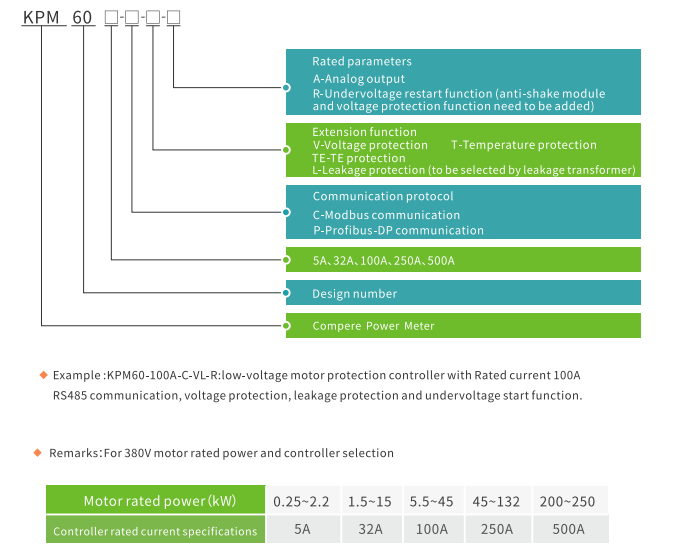

5A，32A, 100A, 250A, 500A |
|
|
Frequency range |
45~65Hz |
|

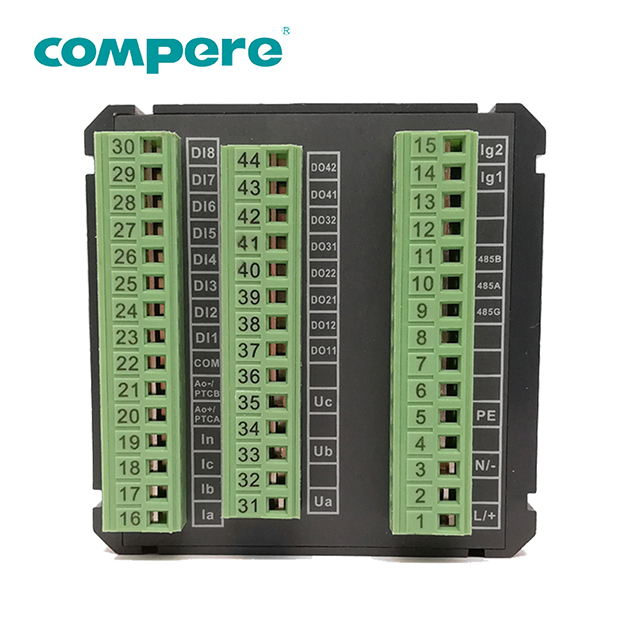

Input/Output |
Switch value input |
8-way passive main line contact DI input, internal supply DC24V power source |
|
|
Relay output |
4-way DO output，Contact capacity 250VAC/5A，30VDC/5A |
|
|
Analog output |
Output range 4~20mA，Programmable |
|
|
Temperature input |
Measure range 0℃~100℃ |
|
Measurement accuracy |
Current |
±1.0%(10%Ie~120%Ie) |
|
|
Leakage current |
±1.0%(5%Ise~100%Ise) |
|
|
Voltage |
±0.5%(20%Ue~150%Ue) |
|
|
Frequency |
±0.02Hz(45Hz~65Hz) |
|
|
Power factor |
±1.0%(-1~1) |
|
|
Energy |
±2.0% |
|
|
Power |
±2.0% |
|
Communication |
Communication interface |
RS485，Photoelectric isolation interface |
|
|
Communication protocol |
Modbus-RTU，1200~38400bps
Profibus-DP，9600~12Mbps |
|
Electrical insulation |
Power frequency withstand voltage |
AC2kV/min~1mA Input-output-power source （GB/T 13729） |
|
|
Insulation resistance |
＞50MΩ （GB/T 13729） |
|
|
Impact voltage |
5kV（Peak），1.2/50us （GB/T 13729） |
|
Working environment |
Operating temperature |
-25℃ ~ +70℃ |
|
|
Relative humidity |
5%~95% No condensation |
|
|
Storage temperature |
-30℃ ~ +75℃ |
|
Electromagnetic Compatibility |
Surge (impact) immunity |
GB/T 17626.5-2008，Level3 |
|
|
Electrical fast burst immunity |
GB/T 17626.4-2008，Level3 |
|
|
Electrostatic discharge immunity |
GB/T 17626.2-2006，Level3 |
|
|
Power frequency magnetic field immunity |
GB/T 17626.8-2006，Level3 |
